  1. Canoe/Dragon Boat/SUP
  2. Configure your power meter

Blade tip to LED distance

The distance from the blade tip to the center of the LED

PreviousBlade type attached to shaftNextShaft to handle offset distance

Last updated 8 months ago

Step 1. Measure the distance from the left blade tip to the LED

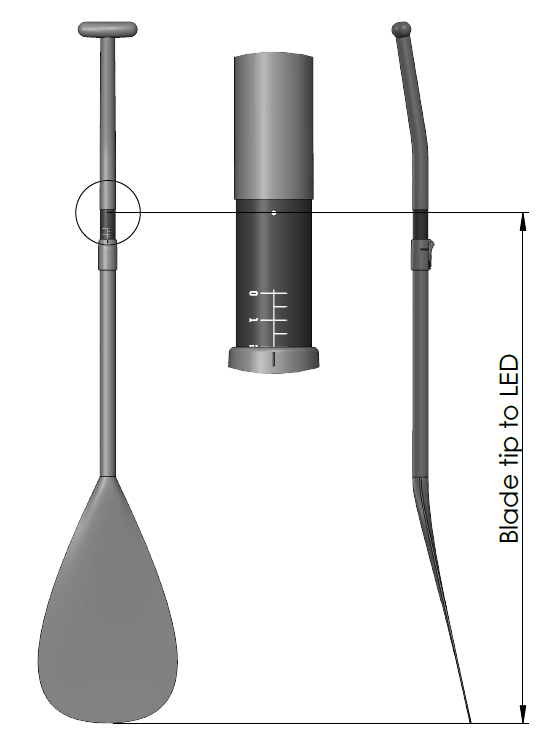

Attach the end of a measuring tape to the blade tip and measure the distance to the centre of the LED as shown in the diagram below.

If your blade has a kickback angle like the one shown in the image below, make sure to measure the distance parallel to the shaft axis.

Step 2. Enter the distances into the 'Blade tip to LED distance' setting

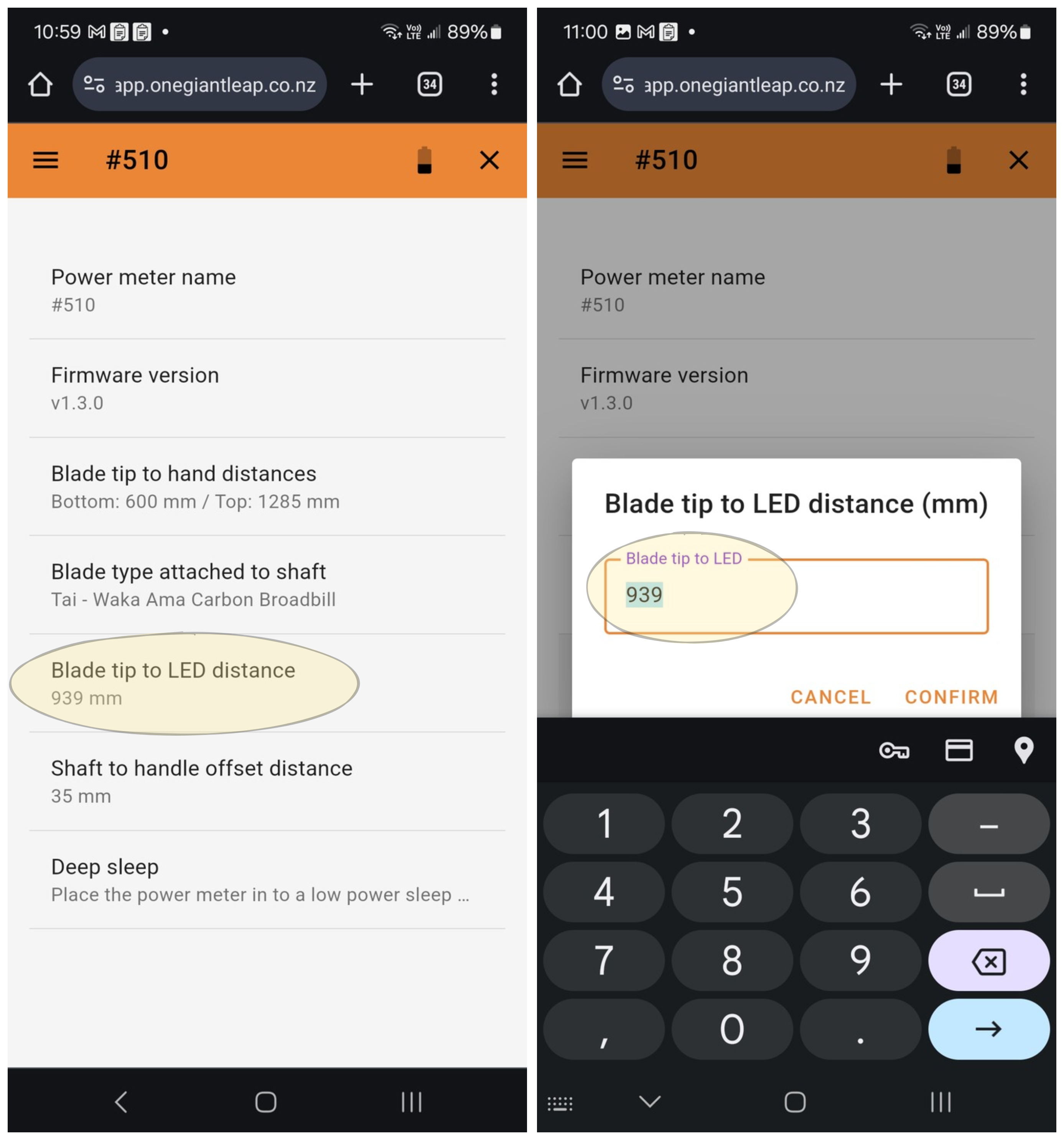

Click on 'Blade tip to LED distance' in the and enter the distance measured in Step 1. above.
